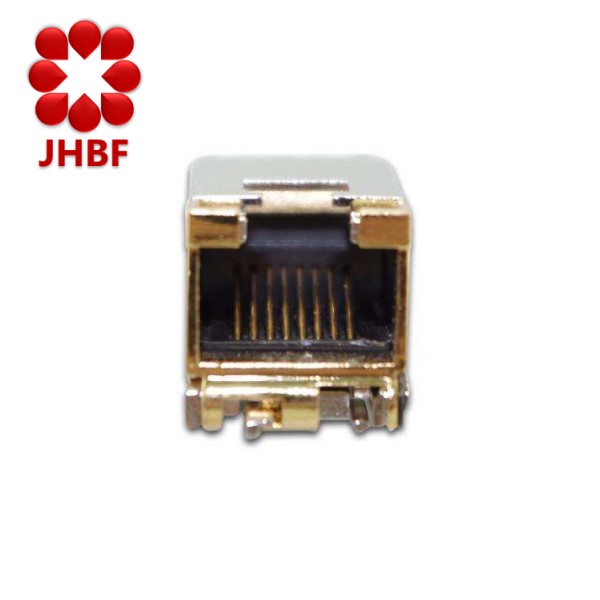

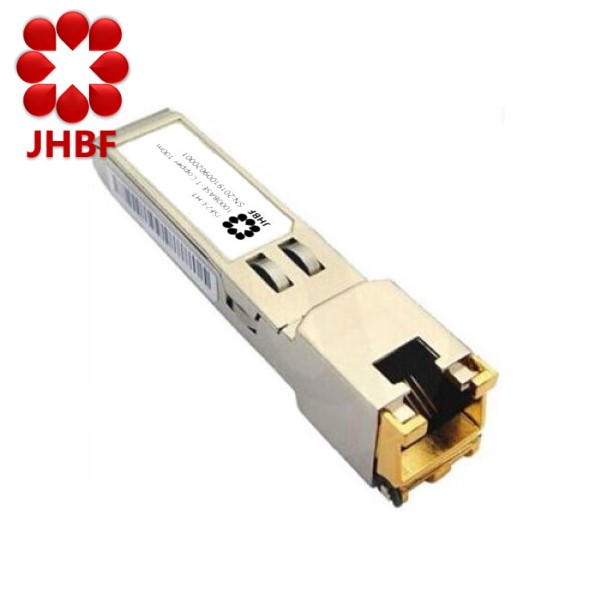

Fiber 0 Compatible 10Gbase-T 10g Copper SFP Module GLC-T RJ45

Name: Fiber 0 Compatible 10GbaseT 10g Copper SFP Module GLCT RJ45
Brand: JHBF
Price: 65.00 USD

Wholesale Fiber 0 Compatible 10Gbase-T 10g Copper SFP Module GLC-T RJ45 from china suppliers

Model Number : JSP03-3T

Place of Origin : Beijing, China

Brand Name : JHBF

Certification : ISO9001;14001;OHSAS18001

Packaging Details : 10 pcs in 1 blsiter, 2 blisters in 1 carton.

MOQ : 2 pieces

Price : $65.00/pieces 2-9 pieces

Type : Fiber Optic Transceivers

Use : FTTH

Data Rate : 10Gbps 10Gbase

Distance : 30m

Connector : RJ45

Temperature : 0-70

Brand : JHBF

Compatiblity : Cisco Finisar H3C Huawei Juniper

Los Signal : Yes

SGMII/SERDES : SERDES

Contact Now

Fiber 0 Compatible 10Gbase-T 10g Copper SFP Module GLC-T RJ45

10GBASE-T Copper SFP Series Transceiver

The JHBF 10GBASE-T copper SFP transceiver is high performance, cost effective module compliant with the 10Gigabit Ethernet and 10GBASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 10Gbps data rate up to 30 meters over unshielded twisted-pair category 5 cable.
The JHBF 10Gbase-T copper SFP series transceiver is designed by all metal case which have good EMI and ESD performance. Moreover, it also complies with SFP Multi Source Agreement (MSA), which can be accessed with address of A0h via the IIC protocol. The physical IC can also be accessed via IIC at address ACh. It can be directly inserted into IP equipment of Cisco, H3C, Huawei and other manufactures. It is widely used in the network of carrier and data center.

Highlights

* Support 10GBASE-T Copper data link, comply with IEEE standard.
* Comply with SFP MSA and IEEE standard, Compatible to multi manufacturer equipment, such as switch and router of Cisco,
Juniper, H3C, Huawei and so on.
* Fully RoHS Compliant.
* Standard RJ45 Interface.
* Fully metallic for low EMI and excellent ESD protection.
* Access to physical layer IC via 2-wire serial bus, comply with the SFF-8472 protocol.
* Extended case temperature range (0°C to +85°C )

Application

It can be widely used in ethernet network equipments, such as routers or switches. JHBF Copper SFP is compatible with multi manufacturer switches or routers.

Specifications

Parameter	Min.	Typ.	Max.	Unit
Storage temperature	-40	–	+85	°C
Operating temperature	0	–	+70	°C
Relative Humidity	0	-	85	%
Supply Voltage	3.14	3.3	3.47	V

Part Number	Data rate(bits/s)	Distance	SERDES/SGMII	Los Signal	Others
JSP03-3T	10G	30m	Serdes	Yes	DDMI, RoHS

Order infomation

Part Number	Product Description
JSP03-3T	SFP-10G Copper-30m-Los-RoHS
